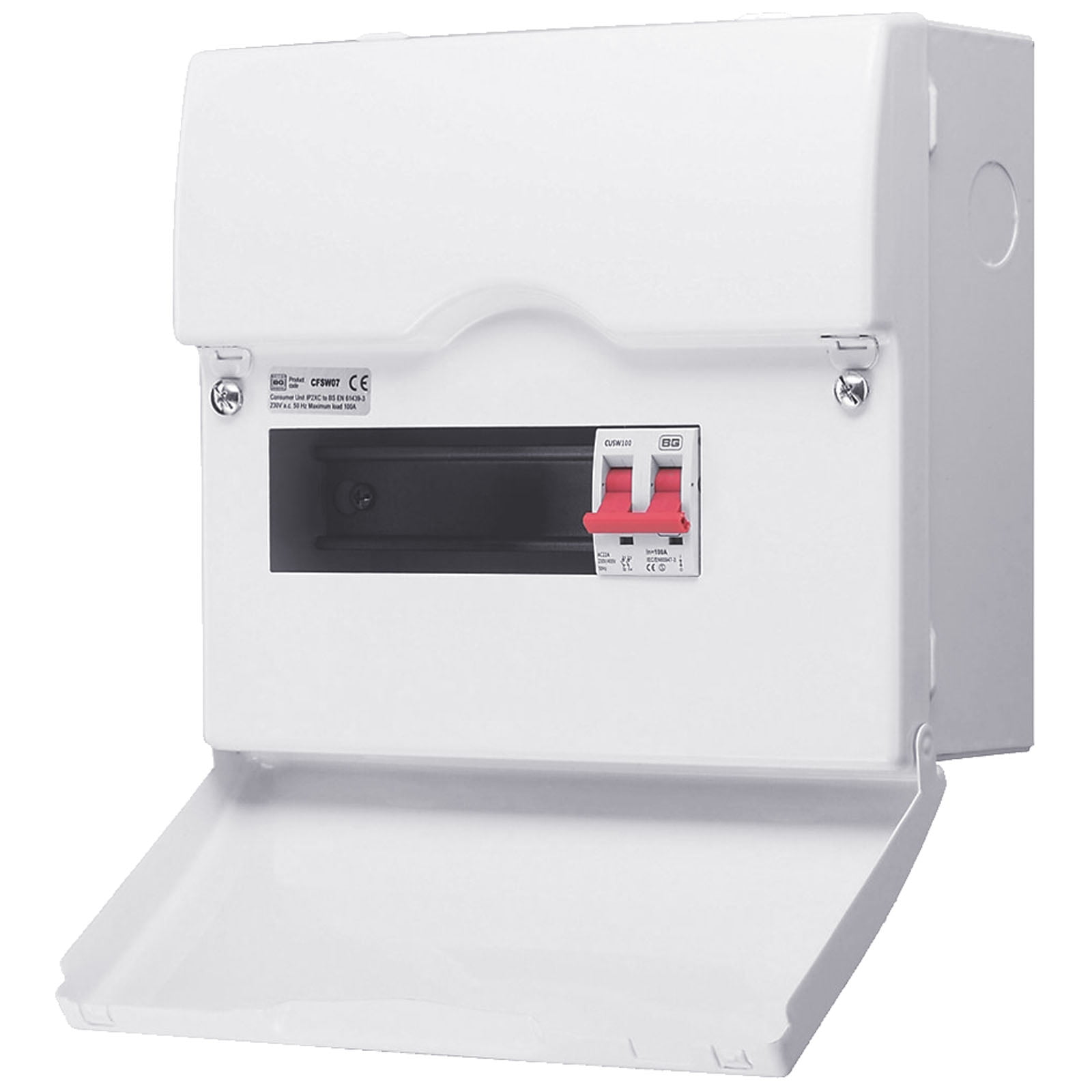

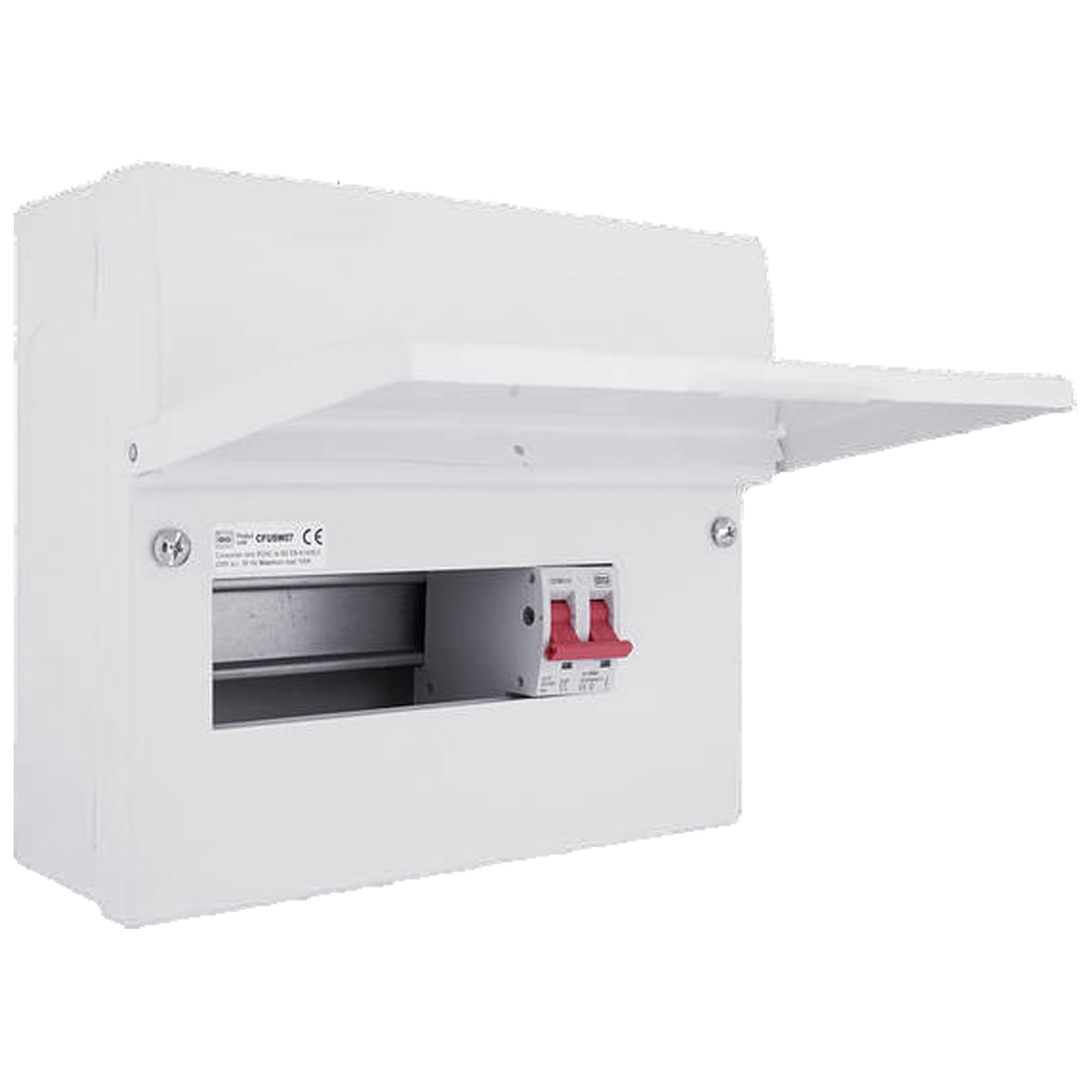

7 Way Metal Consumer Unit c/w 100a Main Switch

Please login to view prices or become a stockist

SKU: BGSW07 Categories: ,


7 Way Metal Consumer Unit c/w 100a Main Switch

All metal consumer units comply with 18th Edition Wiring Regulations BS 7671 & BS EN 61439-3.

Each consumer unit supplied with two cover blanks.

Taller consumer unit increased height provides more space to enable easier installation of RCBOs.

The 6 way and the 10 way products have a taller design, allowing RCBOs to be fitted quickly and easily, with greater wiring space.

  • MCBs, RCDs, and control devices can be fitted into the consumer units.
  • Supplied with 100A Main Switch, busbar, label sheet, 2 cover blanks and instructions.
  • Knockouts.
  • Top & Bottom Face.
  • 6 x ø20mm.
  • 1 x ø32mm.
  • Sides 1x ø32mm.
  • Base 1 x ø50 x 100mm.
  • Finish – White gloss (matches BG white accessories).
  • UV Stability – Yes.
  • Main Switch: EN / IEC 60947-3.
  • Max Current Rating – 100A.
  • Operating Voltage – 230V AC 50Hz.
  • Short Current Withstand – 16kA rms.
  • IP Rating – IP2XC.
  • Main Switch Terminal – 35mm² capacity.
  • Main Switch Torque – 2.5 Nm.

Additional information

Weight2 kg
