Description

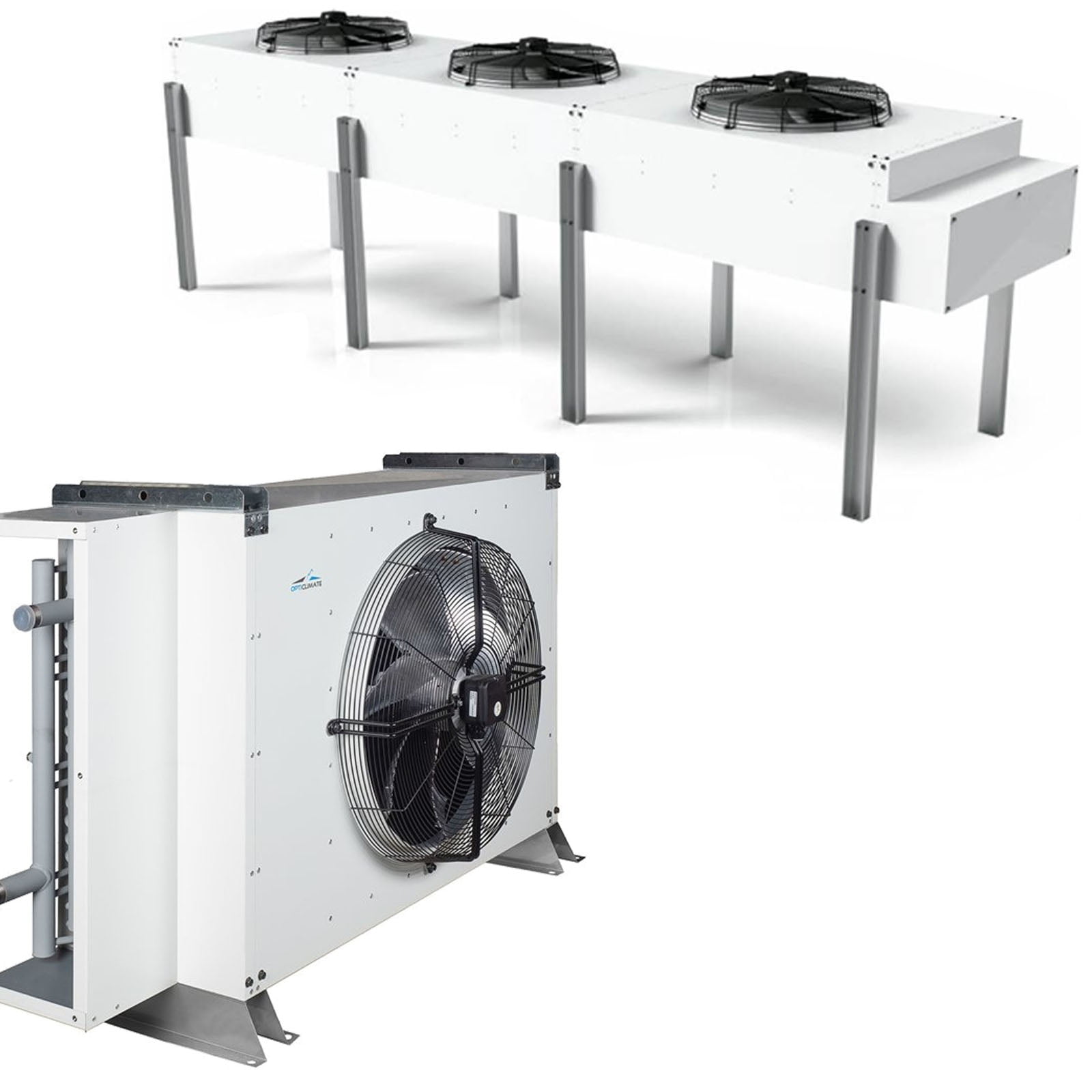

OptiClimate Industrial Water Chillers
Solid water chiller, with a large cooling capacity.

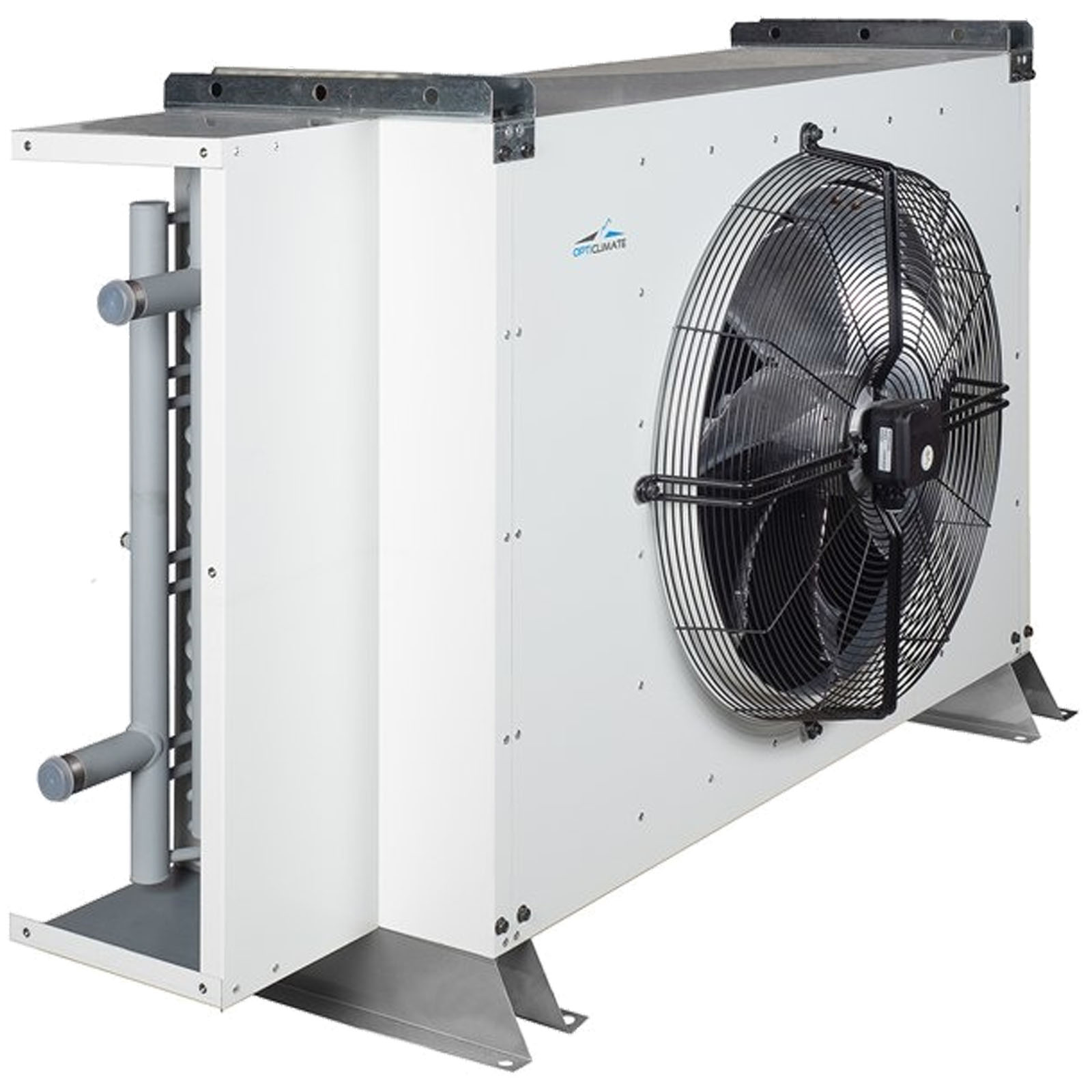

12 kW, 17 kW and 32 kW – Vertical position.
- Capacity:from 14 to 280 kW
- 3/8″ tube diameter:grooved inner surface and high-efficiency fin with 2..1 mm spacing for turbo models
- 3/8″ tube diameter: smooth inner surface and corrugated fin with 2.1 mm spacing for standard models
- Fan motor diameters:450 mm, 500 mm and 630 mm – 4 poles, 6 poles and 12 poles
- Available number of fan motors:from 1 to 2×4 fan motors

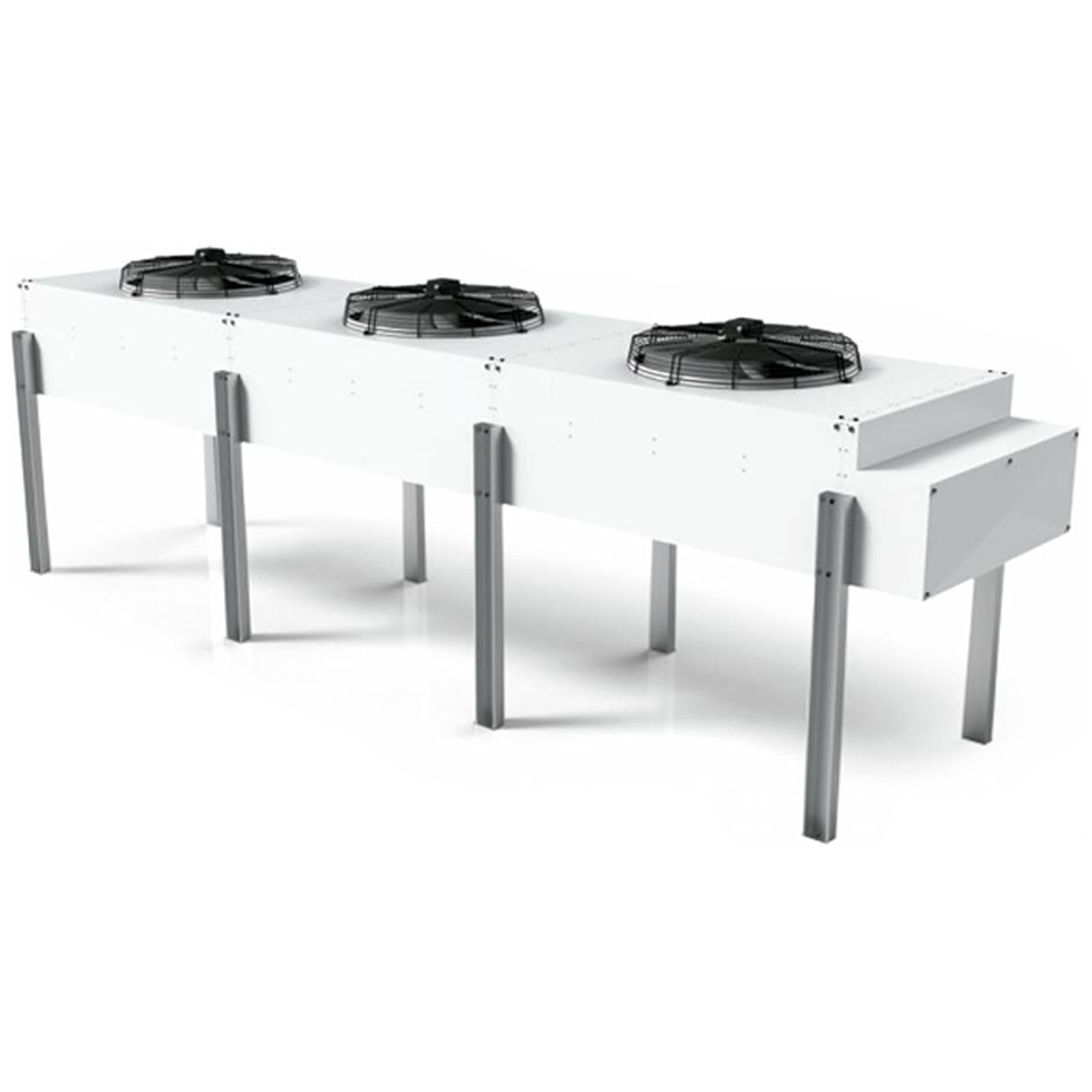

32 kW – Horizontal position.
- Capacity:from 28 to 626 kW
- 3/8″ tube diameter:grooved inner surface and high-efficiency fin with 2..1 mm spacing for turbo models
- 3/8″ tube diameter: smooth inner surface and corrugated fin with 2.1 mm spacing for standard models
- Fan motor diameters:800 mm and 910 mm – 6 poles, 8 poles and 12 poles
- Available number of fan motors:from 1 to 2×5 fan motors
