Dimlux Xtreme LEDs

Please login to view prices or become a stockist

SKU: DL-XTR-LED-V Categories: , ,
Dimlux Logo

Description

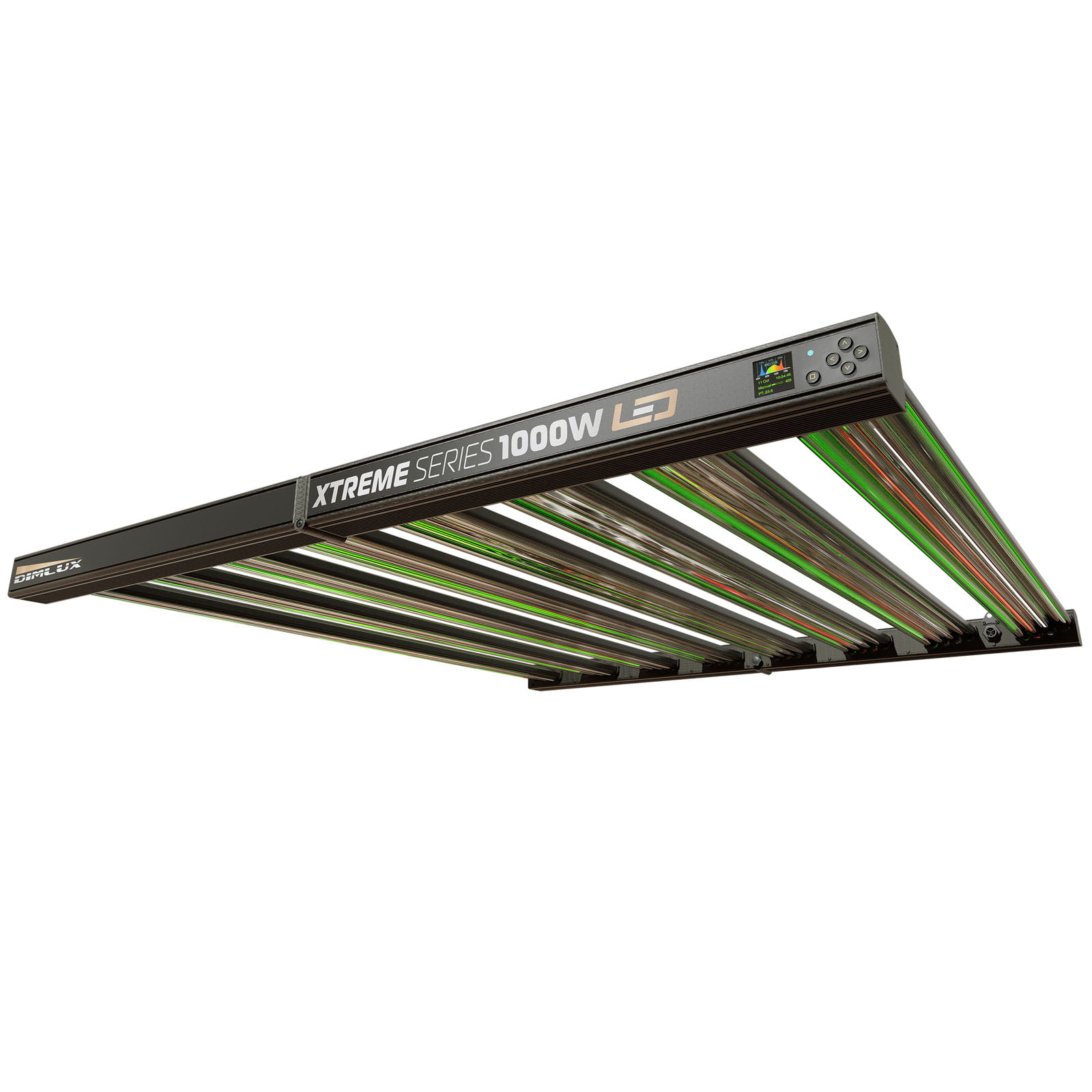

Dimlux Xtreme LEDs

12 Years ago, Dimlux introduced the first ever ground breaking remote controlled HPS ballast in combination with the Maxi Controller; The Dimlux Xtreme Series. Today, Dimlux introduces the smartest, most efficient and most powerful grow light on the market, the Dimlux Xtreme Series LED!

With this innovative LED fixture, Dimlux sets a benchmark for horticultural lighting.

With patented technology, advances in LED technology, and optimal thermal design, the Dimlux Xtreme Series LED will be the preferred option offering significant return on investment to cultivators. Our adjustable PhytoVegSpec® grow spectrum combines full control over light quality (spectral flexibility) and quantity (intensity and DLI) ensuring a uniform spread and even light distribution with extreme penetration into the canopy.

The Dimlux Xtreme Series LED produces ultra-high levels of PPFD, evenly spread over a 1.2×1.2m grow area (500W), with a full grow spectrum, producing consistently high quality & high yield indoor crops.

The Dimlux Xtreme Series LED can be dimmed without losing efficiency. The spectrum and output power can be programmed depending on the time of day and the growing stage of the crop.

Auxiliary RGB LEDs with over 65k colors can be used as supplemental light and can be used as green work light in the dark phase. The work light can automatically be switched on by the internal radar proximity sensor.

Dimlux Xtreme Series LED – NIR

NIR means Near Infrared.

NIR is red light that becomes visible with a thermo graphic camera. It is therefore not directly visible to the naked eye.

The theory that this red light would not contribute to photosynthesis is outdated. New studies have shown that when the red spectrum and NIR are combined, the sum is equal to or even greater than the individual parts. So the colours Red and near-infrared must be combined to work properly.

In this combination, NIR also provides extra stretching of the plant. Customers with a crop that has to remain small choose DimLux LED without NIR. For all other customers we recommend Dimlux LED – NIR. A LED with morphological properties that ensure that the crop grows better in a broader spectrum.

Specs
Light Output (PPF)3110 ?mol/s
System Efficacy2.92 ?mol/J @ 240V AC
AC Input Power1065W @ 230-240V AC
AC Input Voltage120-277V AC, 50/60Hz
Beam Angle90° × 120°
OpticsPatented Deep Penetration Ultra High Transmittance Lens
AuxiliaryLightPatented Light Pipe Multi Color 65k
Proximity sensorDoppler Radar
Mounting HeightAbove Canopy40-85 cm / 15.7-31.4 in
Thermal ManagementPassive
Max. Ambient Temperature40°C / 105°F
ControlBy Maxi Controller or Internal Controller
Smartports (3x)Interlink, Plant Temperature Sensor, Light Sensor
Display For Spectrum and GUI1.54″ 65k Color IPS
Total Harmonic Distortion (THD)< 10%
Lifetime L90> 50,000h
IP RatingIP65
CertificationsCE, UL 8800, UL 1598 Wet Location, DLC
Warranty5 Year Standard
Measurements46.9″ x 42.9″ x 2.2″
