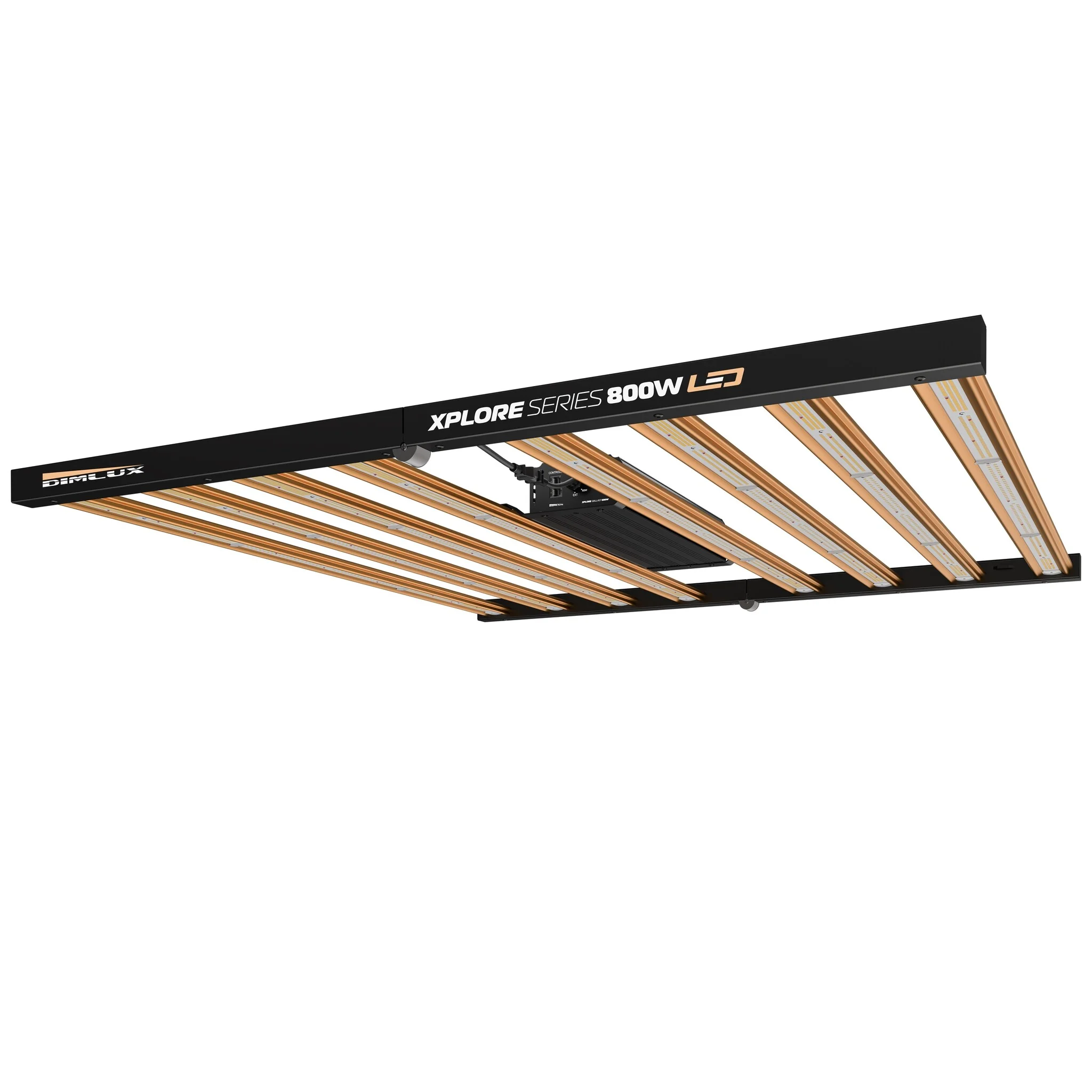

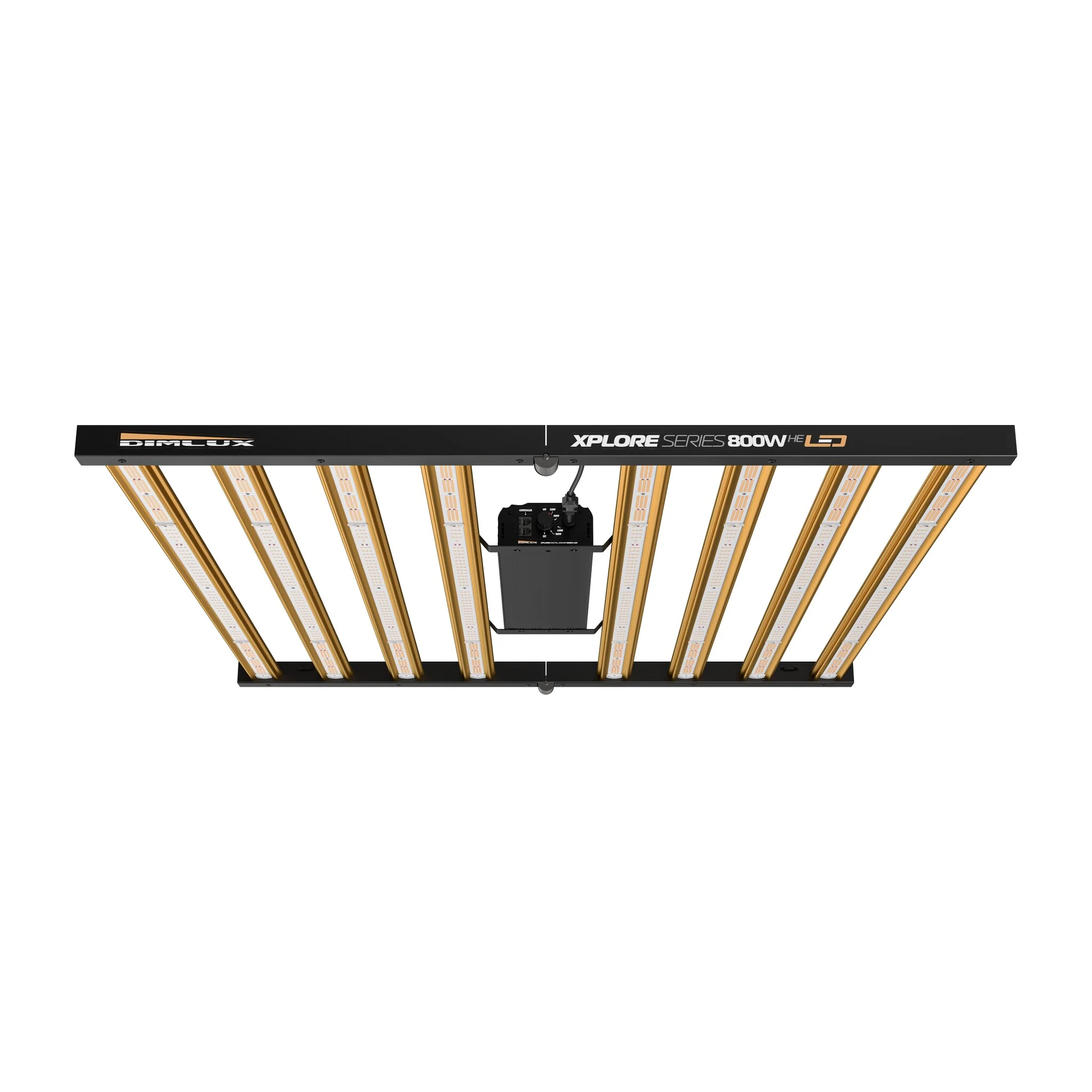

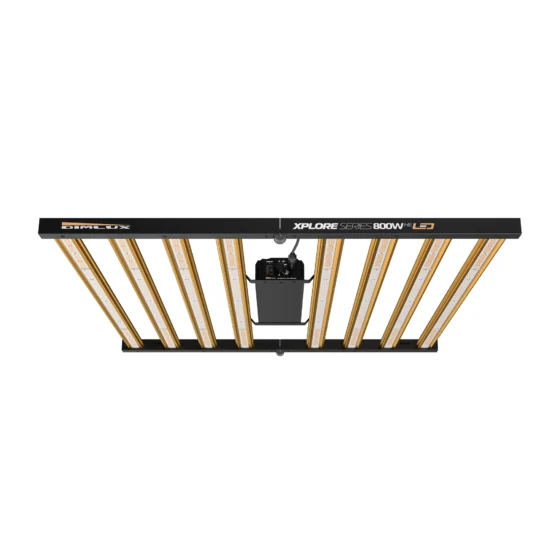

DimLux Xplore Series 800W HE LED

The DimLux Xplore Series 800W HE LED offers an unprecedented price / performance ratio featuring a perfect blend of both full-spectrum white LED diodes and red LED diodes. This results in the perfect spectrum for all phases of growth. The mix of white and red LEDs result in a relatively high ratio of blue-ish light. Blue light keeps your crop tight and compact in the vegetative stage and adds to optimal morphogenesis and light up- take by the plant. The red part is ideal for flower and is accountable for the high yield.

The Xplore 800W Digital Driver, mounted directly on the fixture or positioned remotely, can dim the LED Fixture by the Maxi controller or with the dim button to 320W, 480W, 640W or 800W setting may be selected to give maximum light output.

Lightweight and easy to install, if hung by means of Rope Ratchets the height of the fixture can be adjusted as your plants grow.

This high-performing, high-efficiency LED 8 bar fixture can be used singly or as part of a lighting array.


  • Dimensions: 1105x1067x54mm
  • Ballast: Xplore 800W Digital Driver
  • Spectrum: Full Spectrum White & Red LED Diodes
  • Light Output PPF: 2231 μmol/s
  • Efficacy PPE: 2.8 μmol/j
  • Input Power: 800W
  • Beam Angle: 120°
  • Lifetime L90: >50,000hrs

Expand light spectrum with the matching UV-A and Far-red add-ons. They come in 3 different versions: UV-A, NIR or UV-A+NIR, which can be used within 1 setup. Each add-on has its own unique spectrum. Each supplemental light has its specific application, the UV-A and NIR can be used together with separate timers for maximum effect. When simplicity is required the combined UV-A + NIR add-on is the best choice.

*Add-ons sold separately*
