DimLux Xplore Series 730W 9X LED

Please login to view prices or become a stockist

SKU: DL-2-951 Categories: ,
Dimlux Logo

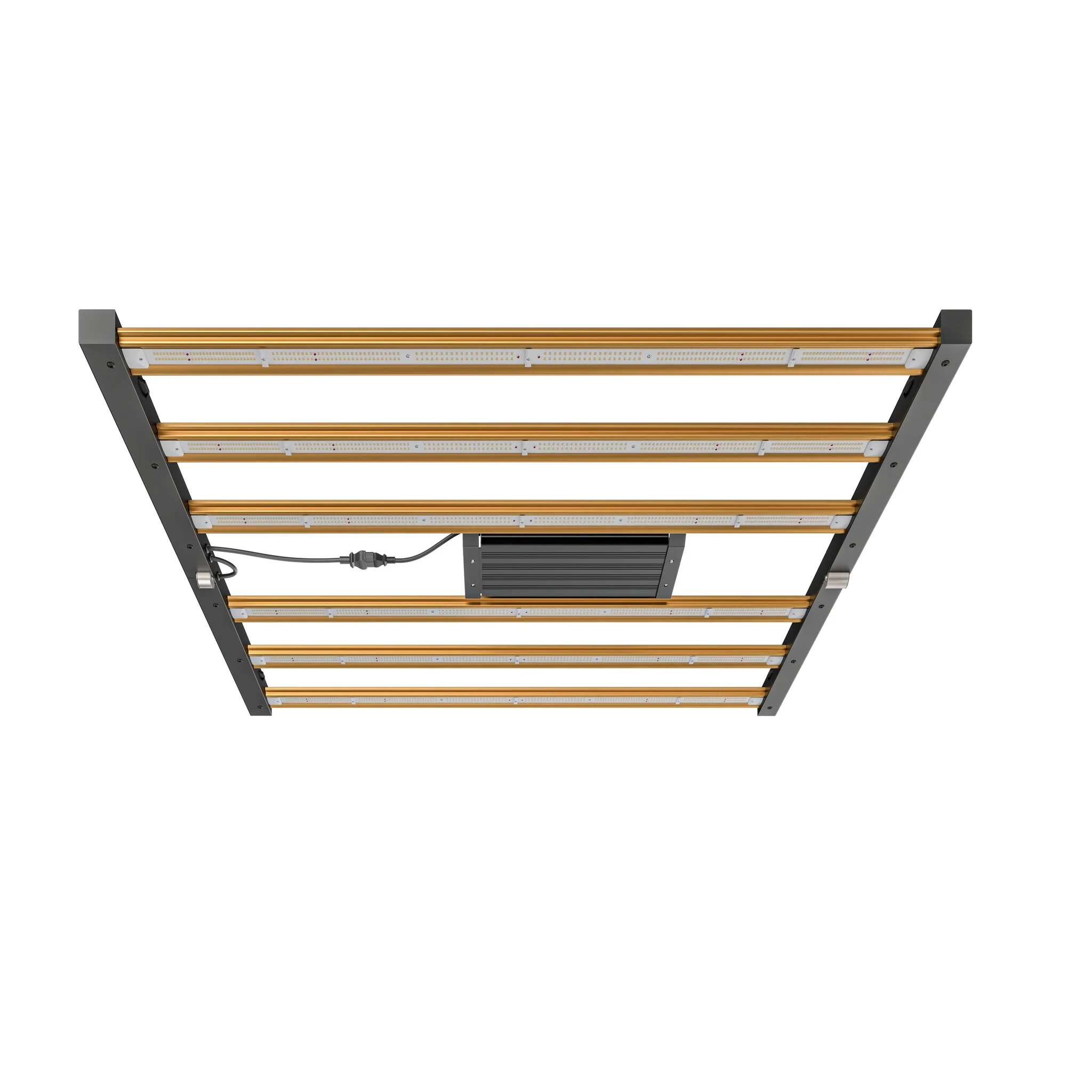

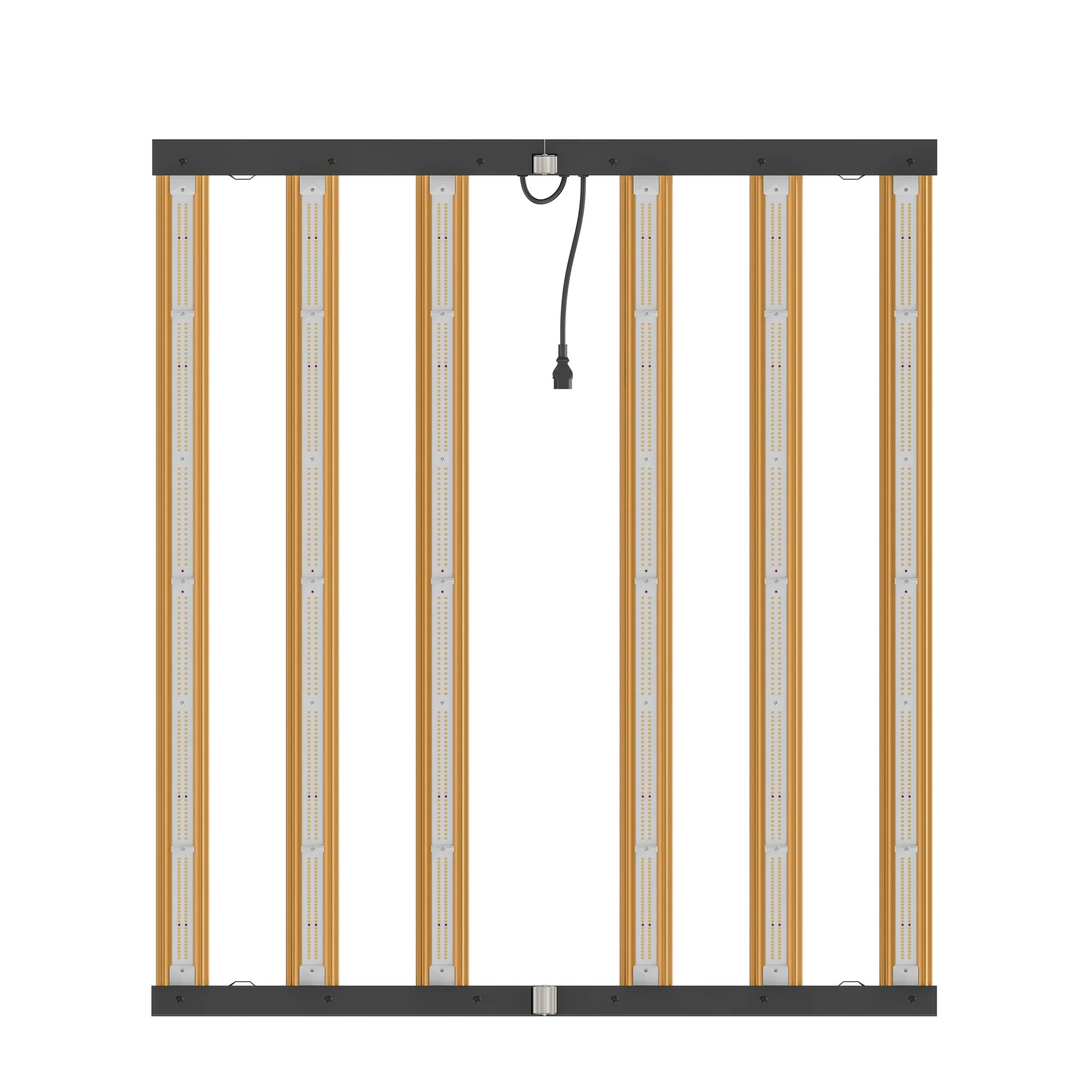

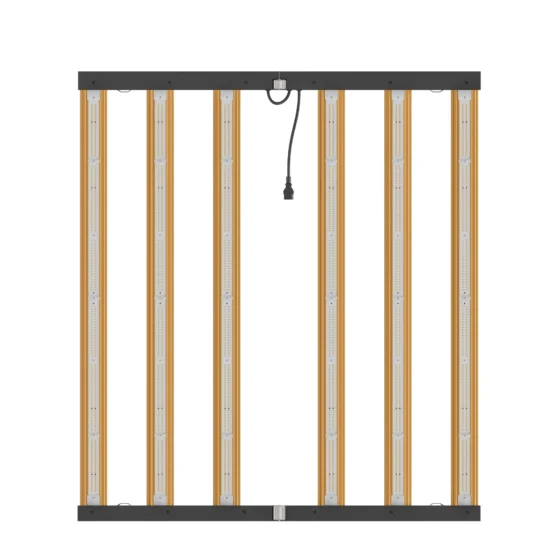

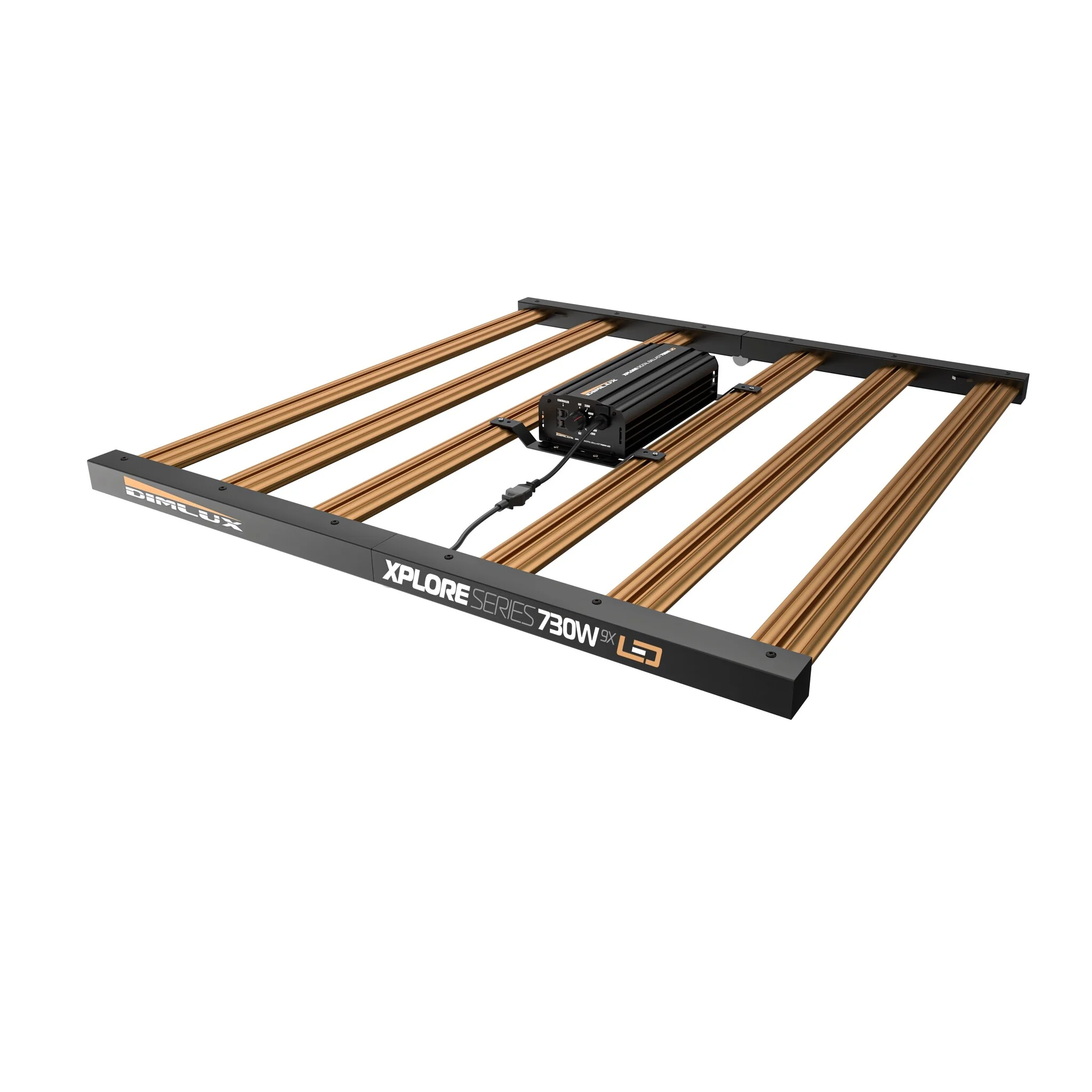

DimLux Xplore Series 730W 9X LED

The DimLux Xplore 730W 9X is specially made to fit in a grow tent. You get the same specifications as the Xplore 730W, but extra compact!

The DimLux Xplore Series 730W 9X LED offers an unprecedented price / performance ratio featuring a perfect blend of both full-spectrum white LED diodes and red LED diodes. This results in the perfect spectrum for all phases of growth. The mix of white and red LEDs result in a relatively high ratio of blue-ish light. Blue light keeps crops tight and compact in the vegetative stage and adds to optimal morphogenesis and light uptake by the plant. The red part is ideal for flower and is accountable for the high yield.

The Xplore 730W Digital Ballast, mounted directly on the fixture or positioned remotely, can dim the LED Fixture by the Maxi controller or with the dim button to 250W, 400W, 600W or 730W setting may be selected to give maximum light output.

Lightweight and easy to install – if hung by rope ratchets the height of the fixture can be adjusted as plants grow.


  • Dimensions: 900x960x54mm
  • Ballast: Xplore 730W Digital Driver
  • Spectrum: Full Spectrum White & Red LED Diodes
  • Light Output PPF: 1944 μmol/s
  • Efficacy PPE: 2.7 μmol/j
  • Input Power: 730W
  • Beam Angle: 120°
  • Lifetime L90: >50,000hrs

Expand light spectrum with the matching UV-A and Far-red add-ons. They come in 3 different versions: UV-A, NIR or UV-A+NIR, which can be used within 1 setup. Each add-on has its own unique spectrum. Each supplemental light has its specific application, the UV-A and NIR can be used together with separate timers for maximum effect. When simplicity is required the combined UV-A + NIR add-on is the best choice.

*Add-ons sold separately*
