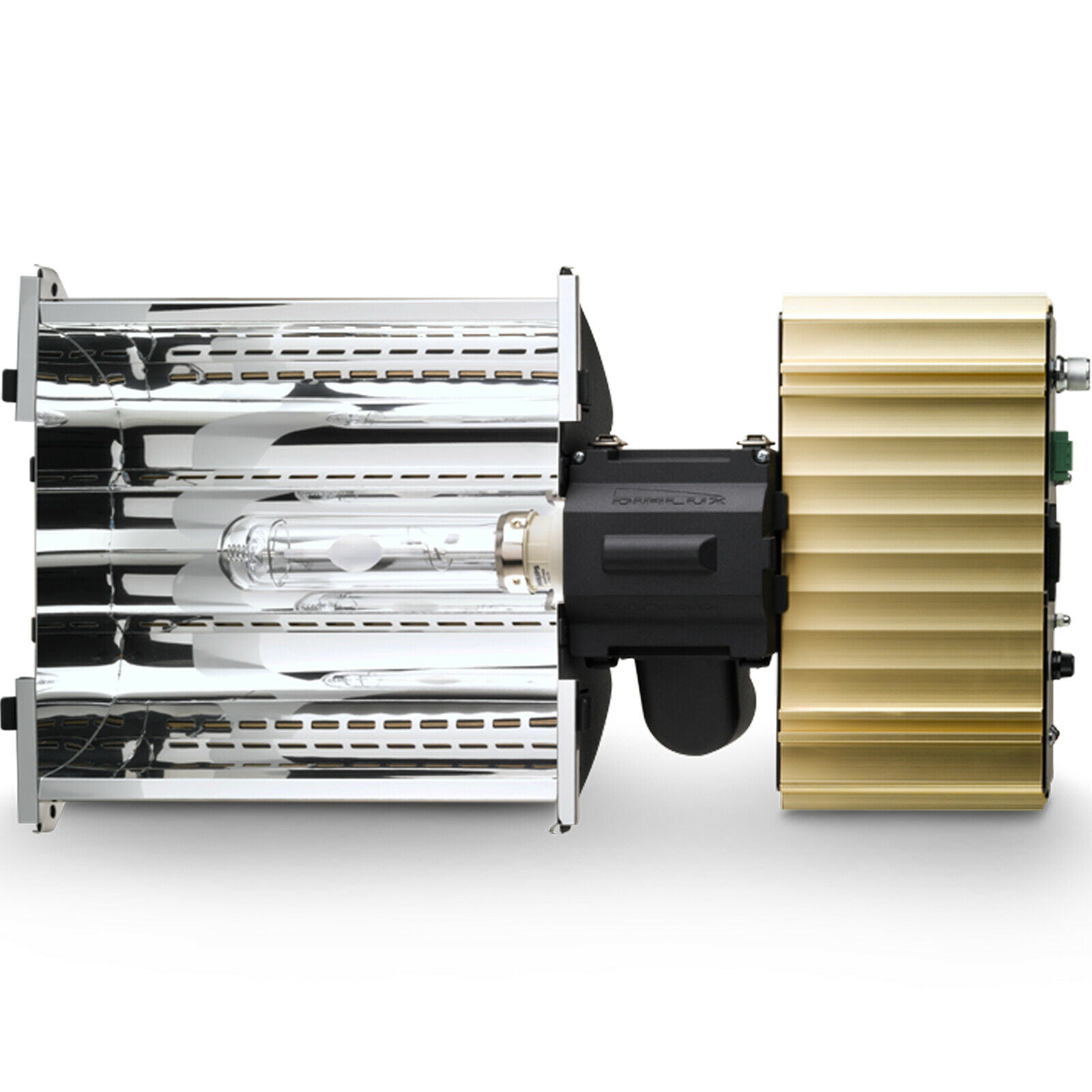

DimLux Expert Series 315W Full Spectrum (Full Lighting Fixture)

The DimLux Expert Series 315W Full Spectrum is a complete lighting kit, with which the revolutionary Alpha Optics reflector is supplied.

Refletor Alpha Optics 98

The Alpha Optics 98 reflector has been designed according to the SBCS (Single Bounce Clear Sight) principle and is manufactured with Miro Silver mirrors. In this way, the maximum possible efficiency (98%) of all existing horticultural reflectors is achieved.

DimLux Expert series equipment and Xtreme ballasts

  • The maximum output power (brightness) by supercharging (boost) and 400V
  • The maximum attenuation range of all digital ballasts
  • Soft-Start function, Soft-Dim, Soft-Off
  • Manual attenuation in 8 positions, including shutdown
  • Smooth attenuation with the MaxiController
  • More diagnostic leds
  • EOL function (warning when lamps need to be changed)

Complete equipment with Xtreme 315W ballast, DimLux CDM 315W lamp and Alpha Optics 98 reflector

  • Attenuation positions: Soft-Off, 165W, 205W, 245W, 280W, 315W, 345W, 380W
  • Nominal power at 315W: 331W 1.4A to 230V
  • Nominal power with boost to 380W = 399W 1.7A to 230V
  • RFA system to 380W = 706umol
  • Illuminated surface: at 315W = min. 0.42m2 / max. 1m2 – at 380W = min. 0.5m2 / max. 1.2 m2
  • Ø 50mm connection for active absorption
  • Dimensions: 530x275x130mm
  • Weight: 4.9kg
