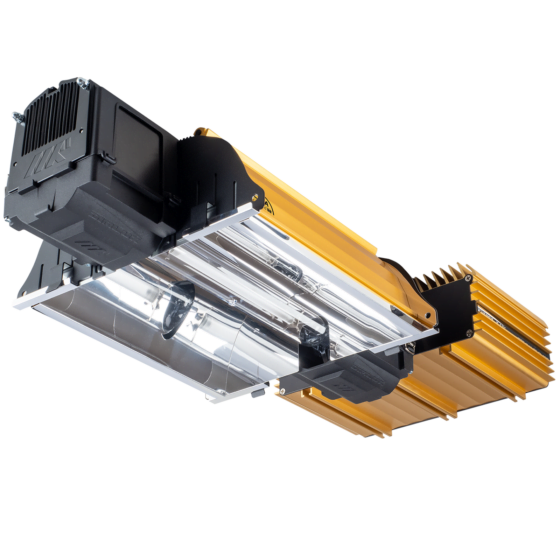

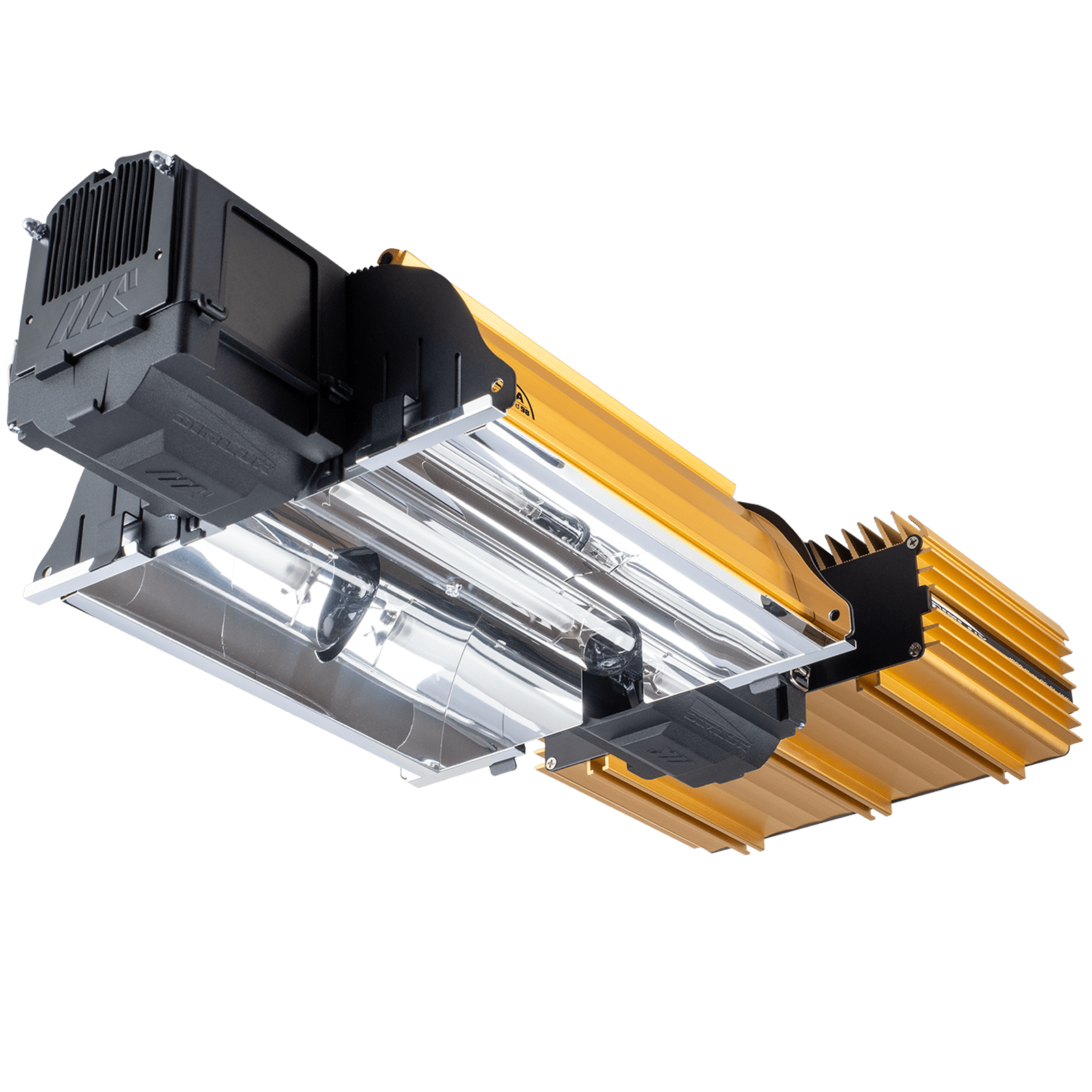

DimLux Expert Series MKII 1000W/1200W (Full Lighting Fixture)

Please login to view prices or become a stockist

SKU: DL-2-533 Categories: , ,
Dimlux Logo


DimLux Expert Series 1000W/1200W MKII (Full Lighting Fixture)

This efficient, functional and smart light fixture contains an unmatched and highly efficient ballast driver: 97% efficient, 30% less losses, 30% more compact and lighter than former Dimlux Expert Series MKI. The innovative closed-ballast design allows for better protection of the electronics.

It is equipped as standard with the Ultra Optics Hybrid 98 reflector. This reflector has the highest reflector efficiency in the market with 98% total efficiency, achieved through Miro 98 (99.99 silver) and the SBCS (Single Bounce Clear Sight) principle. This reflector is also easily interchangeable with the Ultra Optics Wide 98 reflector or Ultra Optics Deep 98 reflector. Both reflectors have a 98% efficiency just like the Ultra Optics Hybrid 98.

In a single push button setting, the power output can be increased in increments of 500, 600, 700, 800, 900, 1000, 1100 and 1200W. This full fixture also contains a 4-character status display with scrolling text, which shows status and error codes clearly. It has a universal smart port which can be used to connect to another ballast or accessory such as a humidity sensor or temperature camera, and is compatible with the DimLux Maxi Controller.

Optimal control, maximum performance

  • Dimlux Xtreme DE HPS Bulb – 400V 1000/1250W
  • Unmatched, high efficiency ballast driver
  • Closed-ballast design for protection of parts
  • Ultra Optics Hybrid 98 Reflector has highest efficiency on the market
  • Easily interchangeable with the Wide or Deep versions of the 98 Reflector
  • Increased lighting increments of 500, 600, 700, 800, 900, 1000, and a boosted 1100 and 1200W
  • Easy to read display for status and error codes
  • Universal smart port with the ability to connect other ballasts
  • Compatible with the DimLux Humidity Sensor, Temperature Camera, and Maxi Controller


  • Input power @ 100% – 1035W
  • Input power @ boost – 1242W
  • Input Frequency: 50/60Hz
  • System PPF: 2530 μmols/s @1200W
  • Ultra-high frequency (UHF)
  • Dimensions – 675mm x 275mm x 130mm
  • Weight – 6.3kg
