SuperPro Deluxe Digital Atmosphere Controller – DDAC-1

Please login to view prices or become a stockist

SKU: SP-DDAC-1 Category:

Description

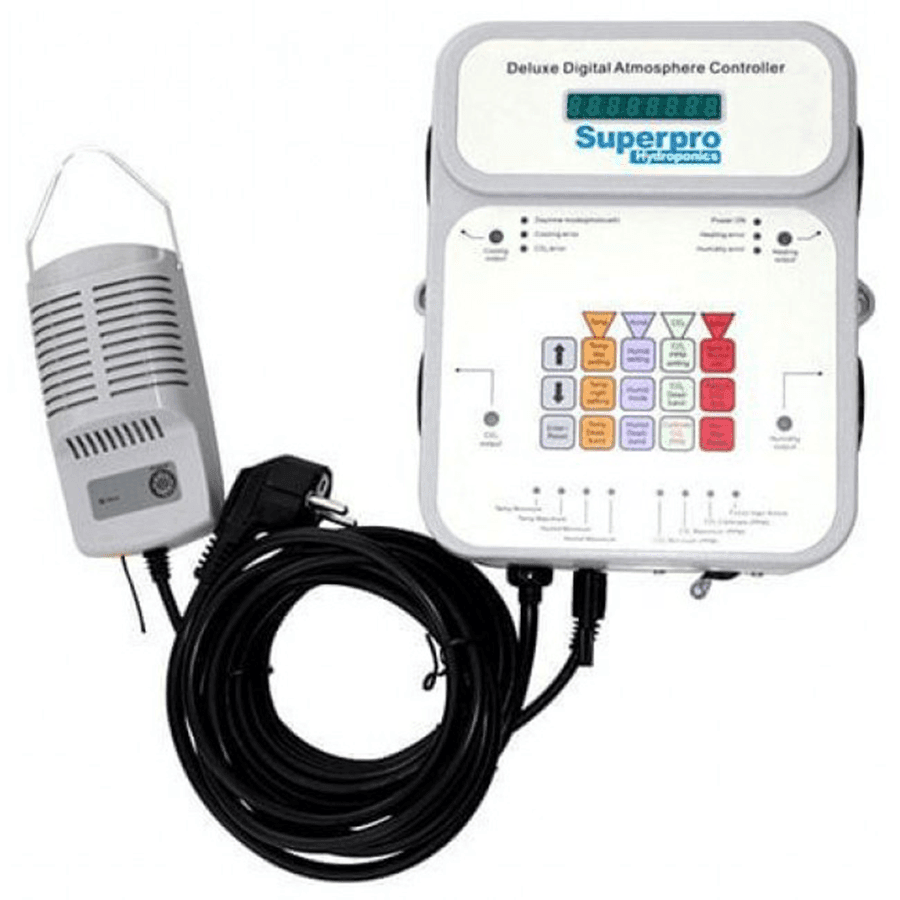

SuperPro Deluxe Digital Atmosphere Controller – DDAC-1

The DDAC-1 features a precision NDIR carbon dioxide (CO2) sensor that measures the level of CO2 up to 2500 PPM. The DDAC-1 also contains a series of precision sensors that maintain the atmosphere of the growing area by measuring air temperature, humidity and lighting levels. The DDAC-1 receives information from the sensors and activates external fans, air conditioners, dehumidifiers, heaters, and CO2 equipment as needed to maintain optimum levels for indoor agriculture. Until now, this simple idea was easier said than done.

  • Features a remote sensor assembly that measures temperature, humidity, CO2 PPM, and light all in a small water-resistant enclosure that can be located up to 5 meters from the main controller enclosure.
  • FOUR separate power outlets used to connect external devices such as fans, CO2 generators, heaters and dehumidifiers. Each external device easily connects to the unit creating a simple and user friendly “plug & play” set up.
  • Simple-to-understand pushbutton settings and a green LED display. DDAC-1 may look complicated to the novice grower, but do not be intimidated it is VERY easy to use.
  • Each unit comes pre-programmed with the recommended settings however, the DDAC-1 is extremely flexible and capable of customization to accommodate a wide range of growing environments.
  • Capable of expansion in order to control higher quantities or larger devices simply by adding a “Power-Multiplier Module” which will be available soon.
  • The DDAC-1 can be all a grower needs to effectively monitor and control an indoor growing environment, even from a remote location. The “Remote Monitoring Software” allows the user to monitor and alter growing conditions remotely from a PC or laptop. This software can also data-log or chart a grow room’s environmental conditions.
Maximum amperage10 amps @ 230 VAC 14.5 amps @ 120 VAC
Remote COMBO probe cable length5 meters
Temperature control range  5º  to 45º C
Temperature accuracy  +/- 1º C
Temperature dead-band (hysteresis)adjustable
Humidity control range 5% to 95% rH
Humidity accuracy+/- 3% rH
Humidity dead-band (hysteresis)adjustable
CO2 control range380-2500 PPM
CO2 accuracy+/- 50 PPM
Weight2.5 kg
Dimensions main unit230 x 180 x 70mm
Dimensions remote sensor127 x 63 x 38mm
