Milwaukee PRO Lux (Light) Meter MW700

Please login to view prices or become a stockist

SKU: MIL-MW700 Categories: ,
Milwaukee Logo

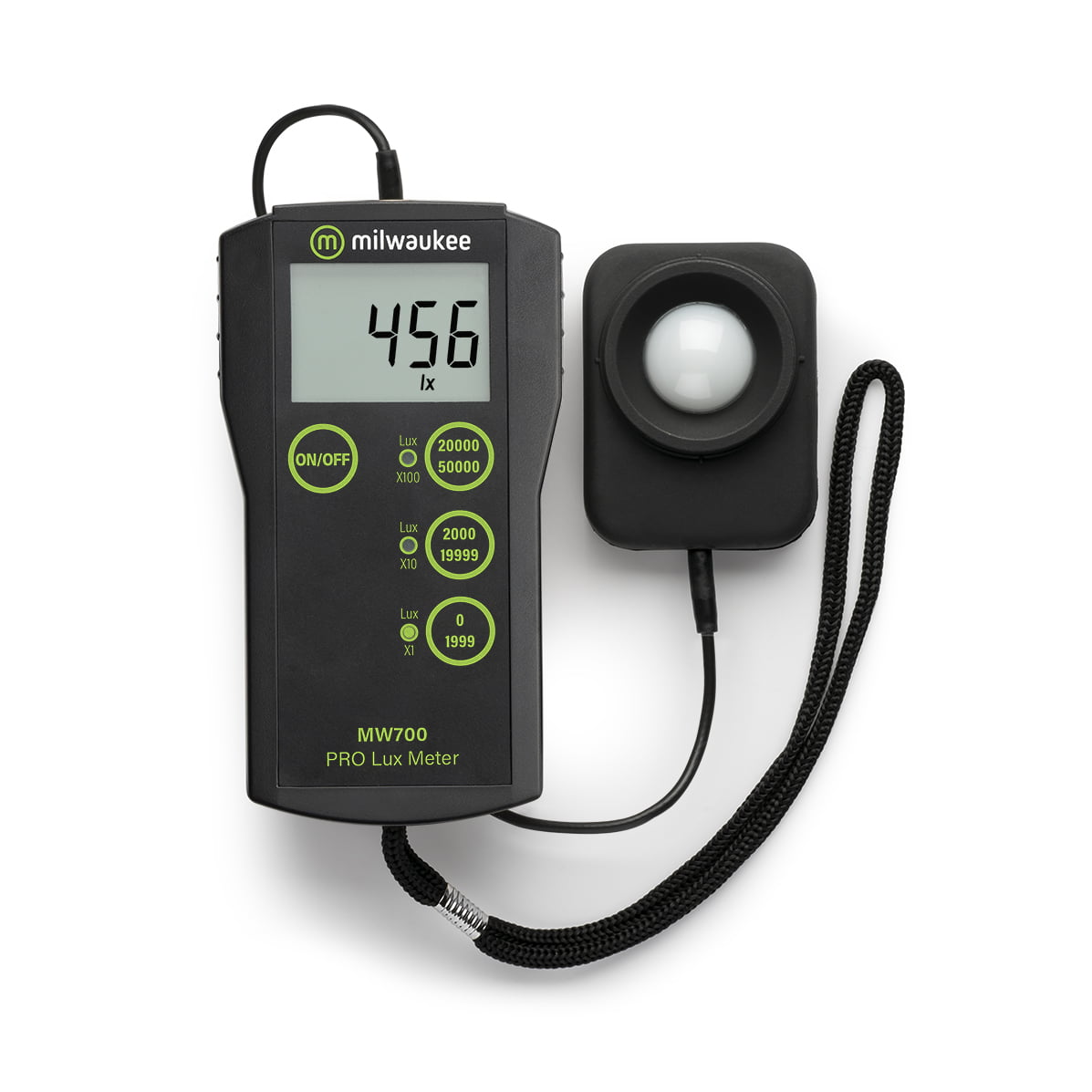

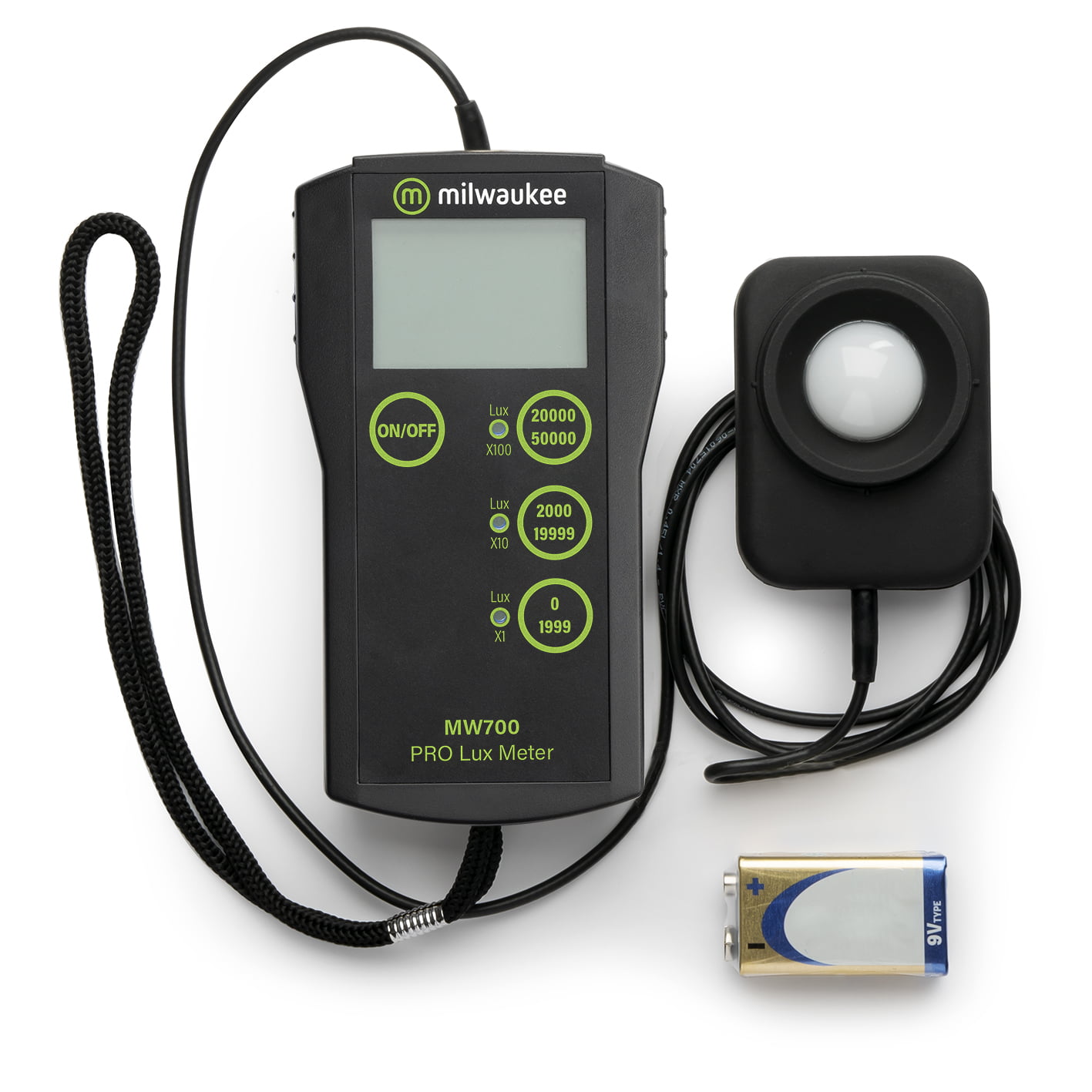

Milwaukee PRO Lux (Light) Meter – MW700

The MW700 is a portable Lux meter designed to perform light measurements from 0 to 50000 Lux. This handy and ergonomically designed Lux meter is ideal for anyone looking for fast and reliable light measurements. This meter is suitable for a wide range of applications, such as Aquarium and Aquaculture, Hydroponic, Agriculture, Horticulture, and Environmental analysis.

  • Fast, easy-to-read results with large digital LCD readout

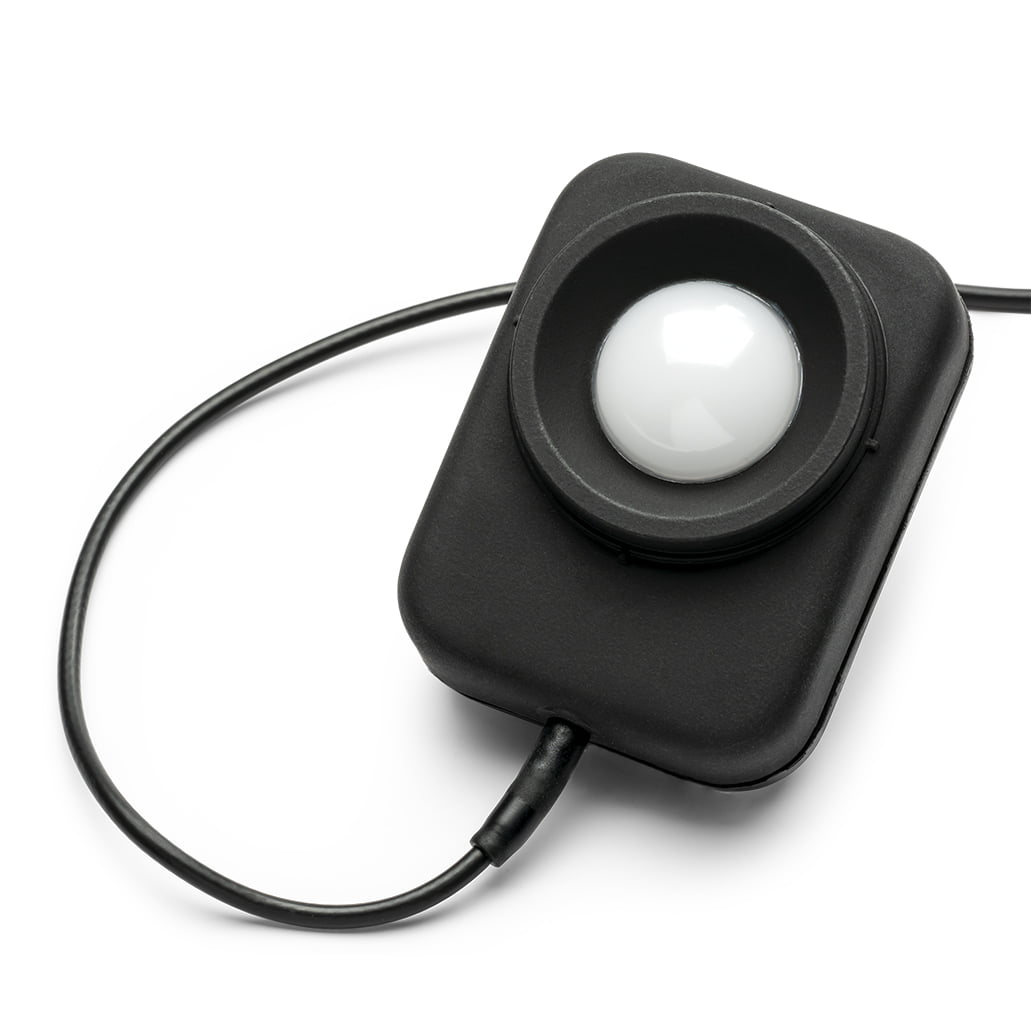

  • Waterproof silicon photodiode sensor attached to a 4.4′ cable
  • Three resolution settings – 1, 10, and 100 Lux
  • Accuracy to ±6% of reading ±1 digit
  • Lightweight and portable
  • 150 hours of battery life with continuous use (battery included) with low battery warning

How It Works:

The waterproof light sensor is attached to a 1.3 m (4.4′) cable and is suitable to verify light intensity at the bottom of aquariums. Average indoor lighting ranges from 100 to 1000 Lux and average outdoor sun lights about 50000 Lux. Lux is a unit that indicates the density of light that falls on a surface. The human eye is sensitive only to blue, green, and red light, so in calculating the Lux falling on an object, only the light that the human eye sees is counted. When only infrared light falls on an object, the Lux is counted as zero since our eyes see nothing. Mathematically, a spectral weighting function becomes convolved with the actual illumination spectrum to calculate Lux exactly. This is the formal definition of Lux and it makes Lux an unusual unit of measure. Still, Lux can be thought of as a way of measuring light in terms of what our eyes perceive. The metric unit of measure for luminance of a surface. One Lux is equal to one Lumen per square meter. One Lux equals 0.0929 footcandles.

How To Use:

  • Put the light sensor on a stable surface in the aquarium, and hold the meter at a proper distance to avoid any interference or disturb to the sensor illumination.
  • Turn the meter on by pressing the ON/OFF key. Press one of the three “Range keys” to select the proper scale according to the intensity of the light. 2000-19000 is recommended for measuring LUX in aquarium.
  • Wait for about 1 second for the reading to stabilize.

Additional information

Weight0.5 kg
